Description

Lift: 6 in.

What’s included:

• * Front and rear Superlift shocks
• * Coil springs
• * Pitman arm
• * Track bar bracket
• * Bump stop spacers
• * 4-Link system
• * Steering stabilizer relocation bracket
• * Brake line relocation bracket
• * Fabricated lift blocks
• * U-bolts and hardware

Notes:

If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required.(Part # 9669)

If equipped with factory top mount overload leaf springs, longer u-bolts are required.(Part # 11734)

Superlift 6″ 4-Link Kit Diesel K171

Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Replacement Heavy-Duty Tubular 4-LINK arms with Reflex bushings
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Front and Rear – Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks or King Shocks
• Backed by our limited lifetime warranty
• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy.

Descriptions:

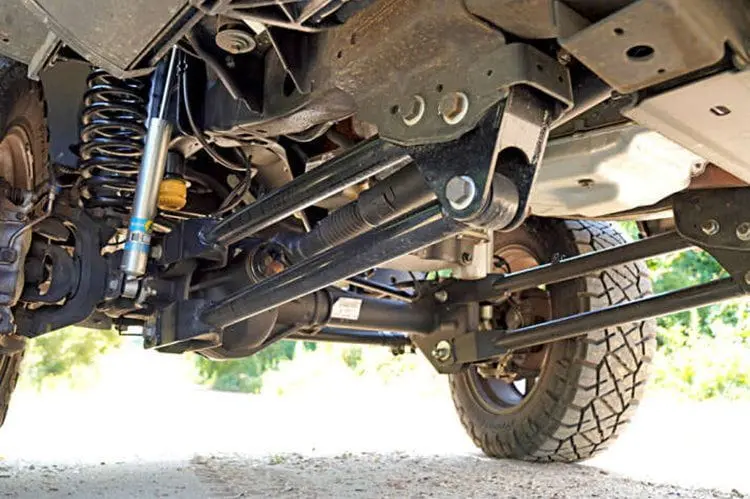

The 6” Lift crafted for the 2017-2021 Ford Super Duty F-250 | F-350 4WD showcases Superlift’s meticulous engineering, emphasizing heavy-duty tubular 4-LINK arms for a distinctive appearance and effortless installation. These robust 4-LINK arms incorporate advanced REFLEX bushings, press-fitted to deliver exceptional vibration dampening, unmatched flexibility, and enduring durability. The innovation in design and choice of materials underscores Superlift’s commitment to elevating your ride with both style and performance.

The 4-LINK configuration in this lift system brings about optimal suspension control and tire wear management for the F-250 and F-350. By curbing caster change during the suspension cycle, it enhances performance and longevity. Additionally, the 6” lift is equipped with new front coil springs, meticulously designed for diesel engines, ensuring the lift height is appropriate while maintaining precise steering geometry and track bar phasing through a dedicated relocation bracket. This attention to detail underscores Superlift’s dedication to providing a lift solution that enhances both performance and safety.

The lift at the rear is facilitated by a newly designed fabricated rear block, replacing the stock block for improved performance. This innovative block also ensures the right pinion and axle angle while effectively reducing axle wrap. To complement your 6-inch lift on the Ford F-250 | F-350, a range of top-notch shocks are available. You can opt for Superlift Shocks, Fox Performance Series 2.0 IFP Shocks, or the superior King Shocks (K171KG). This diverse shock selection underscores the commitment to delivering a tailored and optimal lift experience.
