Description
Style: Superwinch SX12 12V 12000
Vehicle Fit: Universal Fit
Weight: 90 lbs.
Dimensions (L x W x H): 24 x 13 x 12 in.
Winch Type: Electric
Winch Rope/Cable Type: Wire
Winch Pull Rating: 11K – 13.5K lbs.

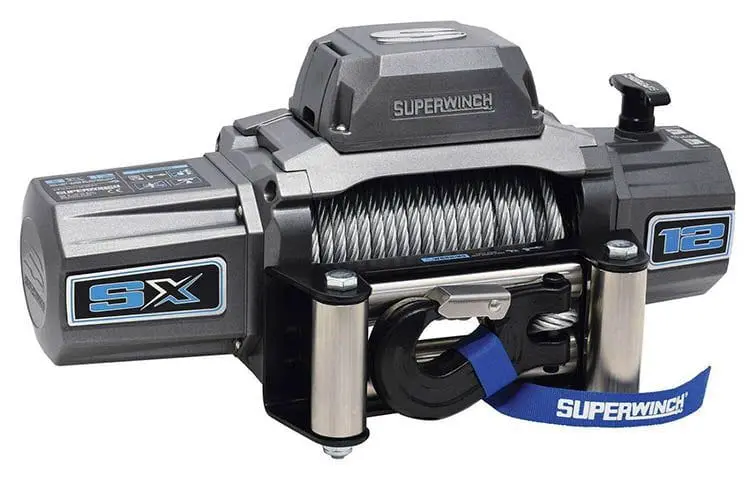

Superwinch SX12 1712200
Give your truck the ultimate upgrade with this powerful Superwinch SX12 winch!
- 12,000 lbs. capacity
- 6.0 HP sealed motor
- Relocatable die-cast aluminum control box
- 12 ft. wired remote with integrated lithium ION rechargeable LED flashlight (2277R Wireless Remote Upgrade Kit available)
- Ergonomic pull-and-turn clutch handle
- 3-stage planetary gearing with a 231:1 ratio
- Patented drum light
- 5/8 in. x 85 ft. wire rope
- Drum diameter measures 2.5 in.
- Heavy-duty Clevis winch hook
- Stainless steel roller fairlead
- 100% full load holding automatic mechanical brake
- IP68-rated waterproof and dustproof
- Durable metallic graphite powder coat finish
- Clockable gearbox
- Brake System – 100% Full-load holding automatic mechanical brake
- Clutch – Pull and turn clutch handle
- Dimensions – 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
- Drum – Durable fully welded steel drum
- Fairlead – Stainless Steel 4-Way Roller
- Gear Ratio – 231:1
- Gearing – 3-stage planetary
- Motor – 6.0 HP, 12V DC
- Package Weight – 90 lbs
- Mounting Bolt Pattern – 10in x 4.5in (254mm x 114.3mm)
- Rated Single Line Pull (Lbs) – 12000
- Remote Control – 12 ft Hand-held wired remote only included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into the winch.)
- Rope Length – 3/8 in x 85 ft (9.5mm x 26m)
- Winch Hook – Heavy-Duty, Clevis Pinned Latched
- Warranty – Limited Lifetime Mechanical/7 Year Limited Electrical
Why consider this steel wire rope for your truck?
SX Series winches surpass the rigorous standards of today’s modern vehicles, offering an affordable and stylish design packed with numerous class-leading features that set them apart from other high-performance winches. With a powerful pulling capacity of 12,000 lbs, the new SX series boasts an IP68 rating for dustproof and waterproof operation. Its sleek, contemporary look is complemented by a durable metallic graphite powder coat that ensures longevity. This winch also includes innovative features like a patented drum light, a relocatable control box, a lighted remote, and steel wire rope, making it a comprehensive solution for your winching needs.
