Description

Style: Superwinch Talon 9.5 12V

Vehicle Fit: Universal Fit

Weight: 102 lbs.

Dimensions (L x W x H): 30 x 15 x 14 in.

Winch Type: Electric

Winch Rope/Cable Type: Non Synthetic

Winch Pull Rating: 8K – 10.5K lbs.

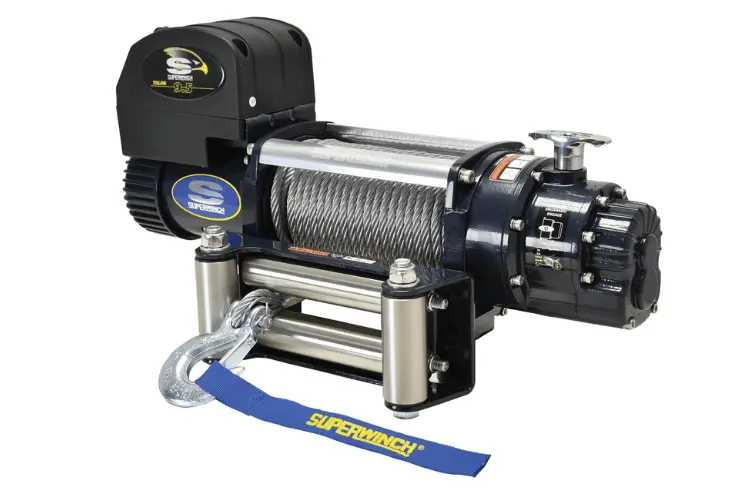

Superwinch Talon 1695200

Features:

• 12V DC 9,500 lbs. rated line pull
• 5.2 HP sealed motor
• Automatic load holding external disc brake design located outside the drum
• Ergonomic free spool knob lifts and turns effortlessly
• 2-stage spur/2-stage planetary gearing with 148:1 ratio
• Sealed submersible vented solenoid
• 3/8 in. x 85 ft. steel wire rope
• Heavy duty, clevis pinned, latched hook
• 15 ft ergo handheld remote control with coiled cable and LED light indicators
• 62 FPM no load line speed
• IP 67 rated against dust and moisture
• Stainless steel 4-way roller fairlead

Details:

• Brake -Automatic 100% Load Holding Disc (outside of drum)
• Clutch – Free-Spooling, Pull and Turn
• Dimensions – 24.6 in. L x 10.0 in. D x 10.7 in. H (624.8mm L x 254mm W x 271.8mm H)
• Drum – 2.5 in. (63.5mm)
• Drum – 8.75 in. (222.2mm)
• Fairlead- Heavy Duty Stainless Steel 4-way Roller
• Gear Ratio – 148:1
• Gearing – 2-Stage Spur, 2-Stage Planetary
• Hook – Heavy-Duty, Clevis Pinned Latched
• Installed Weight – 90 lbs. (41 kg)
• Line – 75 Amps Motor Draw/62 FPM (18.9 MPM) Line Speed
• Line – 430 Amps Motor Draw /5.0 FPM (1.50 MPM) Line Speed
• Motor – Sealed 5.2 HP Series Wound
• Mounting Bolt Pattern – 10 in. x 4.5 in. (254mm x 114.3mm) & 10 in. x 6.5 in. (254mm x 165.1mm)
• Rated Line – 9,500 lbs. (4309.1 kg)
• Remote – Sealed Ergonomic Hand-held with 15ft. Coiled Cord
• Rope – Steel Wire 3/8 in. x 85 ft. (9.5mm x 25.9m)
• Solenoid – Vented, Sealed Submersible
• Warranty – Limited Lifetime Mechanical, 7 Year Limited Electrical

Descriptions:

One of Superwinch’s most popular winches, the Tiger Shark 9500SR comes standard with 3/8 synthetic rope, an automatic load-holding brake, better drums (thicker, fabricated steel), and stainless steel hardware, and tie bars. Dollar for dollar, there’s no better winch than the Superwinch Tiger Shark.
