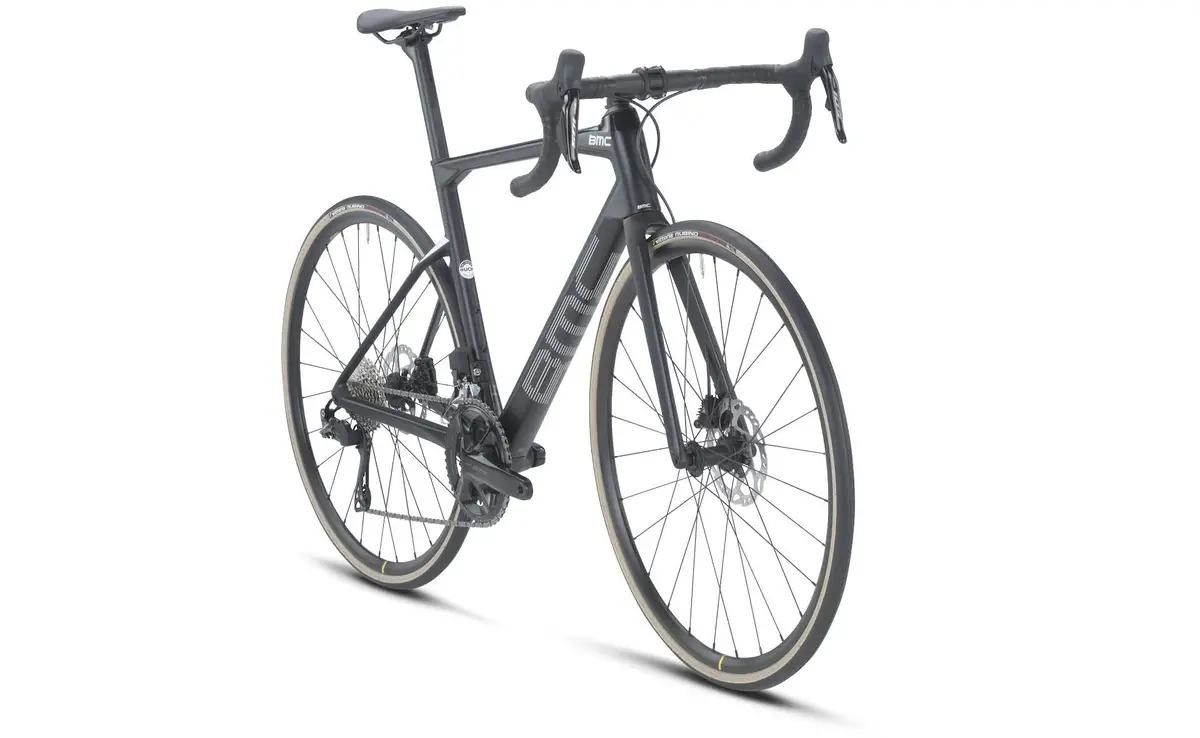

BMC Roadmachine Five Road Bike – Carbon/Metallic Grey, Shimano 105 Di2

Description

The Roadmachine‚Äôs frame and fork are constructed in our Premium Carbon with all the benefits of the built-in TCC Endurance technology. This road bike’s clean aesthetic comes courtesy of internal cable routing, whilst the Premium Carbon D-Shape seatpost ensures next-level compliance in the saddle. This Roadmachine is specced with a Shimano 105 Di2 2×12 Drivetrain, Mavic Open Disc wheels, 28mm tires and an aluminium handlebar and stem.



Technical Overview

Full Specifications

• Frame

  Roadmachine Premium Carbon with Tuned Compliance Concept Endurance
  Internal Cable Routing
  PF86 Bottom Bracket
  Flat Mount Disc
  12x142mm Thru-Axle

• Fork

  Roadmachine Premium Carbon with Tuned Compliance Concept Endurance
  Internal Cable Routing
  Flat Mount Disc
  12x100mm Thru-Axle

• Gears

  2×12

• Chainwheel

  SHIMANO 105 FC-R7100 50-34T

• Cassette

  SHIMANO 105 CS-R7100 11-34T

• Chain

  SHIMANO 105 CN-M6100 12spd

• Rear Derailleur

  SHIMANO 105 Di2 RD-R7150

• Shifters

  SHIMANO 105 Di2 ST-R7170

• Brakes

  SHIMANO 105 BR-R7170 | SHIMANO SM-RT70 160 / 140mm

• Handlebar

  BMC RAB 03 – Ergo Top Shape – Compact Bend

• Stem

  BMC RSM01

• Seatpost

  Roadmachine Premium Carbon D-Shaped Seatpost
  15mm Offset

• Saddle

  Fizik Antares R7

• Hubs

  CL-712 (F)/RXC-1425 (R) – Thru Axle

• Rims

  Mavic Open Disc

• Tires

  VITTORIA RUBINO – 28mm

• Tire Clearance

  33mm (Measured Width)

• Weight Limit

  110 Kg

• ASTM Classification

  Level 2

Geometry

Size	47	51	54	56	58	61
Rider Height CM	<166	166-174	172-180	178-186	184-192	>190
Stack MM	516	541	562	586	610	644
Reach MM (reach)	374	382	386	390	394	398
Seat Tube MM (st)	420	457	500	522	539	573
Top Tube MM (tt)	522	532	546	556	568	583
Head Tube MM (ht)	112	139	156	181	206	242
Seat Tube Angle (sa)	74.2	74.2	74.2	74.2	74.2	74.2
Head Angle (ha)	71.2	71.2	72.0	72.0	72.0	72.0
Rear Center MM (rc)	410	410	410	410	410	410
Front Center MM (fc)	583	599	597	609	621	635
Wheelbase MM (wb)	982	999	997	1008	1020	1035
BB Drop MM (drop)	71	71	71	71	71	71
Fork Length MM (fl)	375	375	375	375	375	375
Fork Rake MM (fr)	50	50	45	45	45	45
Trail MM (trail)	63	63	63	63	63	63
Crank Length MM	170	170	172.5	172.5	175	175
Stem Length MM	90	90	100	110	110	120
Stem Angle	±8	±8	±8	±8	±8	±8
Bar Width MM	400	420	420	420	420	440
Bar Drop MM	125	125	125	125	125	125
Bar Reach MM	70	70	70	70	70	70
Post Offset MM	15	15	15	15	15	15
Standover Height mm	719	750	782	805	825	859
Seatpost Length MM	330	380	380	380	380	430



Technical Details & Manuals

Frameset

• Roadmachine premium carbon frame with Tuned Compliance Concept Endurance
• Roadmachine premium carbon fork with Tuned Compliance Concept Endurance
• Roadmachine premium carbon D-shape seatpost

Roadmachine features classic, round steerer forks. Models equipped with ICS stems use dedicated components that are adapted for use on round steerer forks.*

Technical Details

• Internal cable management
• D-Shape seatpost with D-fender mount
• Integrated seat clamp
• Easy access Di2 junction box integrated in downtube
• Top tube mount
• Downtube integrated chain catcher
• ASTM level 2

Sizes

47, 51, 54, 56, 58, 61

Frame Weight**
895 g

Fork Weight**
410 g

Seatpost Weight**
160 g

Cockpit

ICS01 Stem with RCB01 or RAB02 Bar

• ICS01 stem with internal cable routing and easy fit adjustment; classic BMC RAB02 handlebar
• Garmin/GoPro integrated computer mount (Wahoo-ready with GoPro-compatible mounts)
• Handlebar reach/drop: 77/117 mm (RCB01), 70/125 mm (RAB02 and RAB03)
• ICS01 stem angle: -12.5
• 200 g (stem)

RSM01 Stem with RAB02 or RAB03 Bar

• Classic stem and bar combination
• Garmin/GoPro integrated computer mount (Wahoo-ready with GoPro-compatible mounts)
• Handlebar reach/drop: 70/125 mm (RAB02- RAB03)
• Stem angle: ¬±8 (RSM01)

Compatibility

Frame, Fork and Seatpost

• Tapered fork with round 1-1/8″ steerer, flat mount
• Compatible with electronic and mechanical groupsets
• PF86 bottom bracket
• D-Shape seatpost with D-fender mount
• Braze-on, removable front derailleur mount
• Replaceable ultra light sandwich rear derailleur hanger

Brakes

• Front brake: flat mount, 160 mm rotors only
• Rear brake: flat mount, 140/160 mm rotors

Wheels and Axles

• Designed for 28 mm, maximum tire clearance 33 mm (actual measured width)
• Front thru-axle: 12×100 mm (diameter/frame spacing)
• Rear: thru-axle: 12×142 mm (diameter/frame spacing)

*Notes about proprietary technology

**Weight for the lightest finish, including complete hardware with size 54 frames
